Anode Baskets

For the surface finishing industry

Palm Technology supplies a full range of anode baskets tailored for metal finishing applications, built to withstand harsh chemical environments and optimize anode efficiency. We offer baskets fabricated from stainless steel, titanium, and mild steel, with each material suited to specific plating chemistries and process conditions. Whether your operation involves nickel, copper, zinc, or precious metals, Palm can provide the right anode containment solution to ensure consistent metal distribution and reduced sludge buildup.

Stainless Steel Anode Baskets

Stainless steel anode baskets are the most widely used option across general-purpose plating lines. They provide excellent durability, moderate corrosion resistance, and are suitable for many common acid-based baths such as copper sulfate, nickel sulfate, and zinc plating. Stainless baskets are available in 304 or 316 grades, depending on the level of corrosion protection required. They are cost-effective, strong, and easy to fabricate into custom shapes—making them ideal for rack plating and high-throughput operations.

Titanium Anode Baskets

For highly corrosive plating chemistries—such as chromic acid, fluoborate, or electroless processes—titanium anode baskets are the premium solution. Titanium offers exceptional resistance to aggressive solutions and is commonly used in nickel and gold plating lines where long-term durability and process stability are critical. Titanium baskets also support inert anode bags more effectively due to their rigidity and chemical resistance. Though higher in cost, they significantly reduce basket failure and minimize contamination risks in sensitive baths.

Mild Steel Anode Baskets

Mild steel baskets are used primarily in alkaline processes or non-corrosive environments where cost is a key factor. These baskets are common in cyanide-based zinc or cadmium systems and in some cleaning or stripping tanks. While not suitable for acidic solutions, mild steel is easy to work with and a good choice for short-term applications or where frequent replacement is expected. Palm offers coated mild steel options for limited corrosion resistance or as temporary solutions in pilot or batch setups.

Basket Styles and Customization

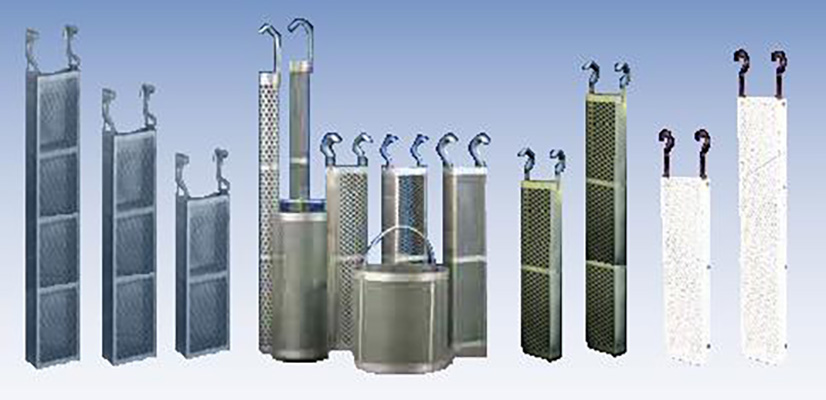

Palm supplies anode baskets in a variety of styles and mesh configurations, including flat, round, and slotted designs. We also offer baskets with reinforced bottoms, hanging hooks, welded or bolted lids, and insulated handles for easy installation and maintenance. Baskets can be custom-sized to fit any tank or rack configuration, and we offer compatibility with anode bags and sleeves for particulate control and solution clarity.

Application Expertise and Integration

Choosing the right anode basket material is critical to maintaining bath stability, reducing sludge, and achieving consistent deposition across your parts. Our engineering team works with you to evaluate plating chemistry, temperature, current density, and tank layout to ensure the best basket selection. Whether you need off-the-shelf replacements or fully custom fabricated units, Palm delivers quality baskets ready to perform in demanding production environments.

Contact Palm Technology to discuss your anode basket needs. With deep knowledge in surface finishing equipment and materials, we’ll ensure your system is equipped with the right anode containment to support long-term plating success.
