ENTank™ - Electroless Nickel Plating Tanks Built for Performance
Durable, systems engineered for consistent bath control and long service life.

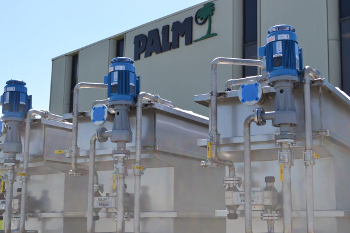

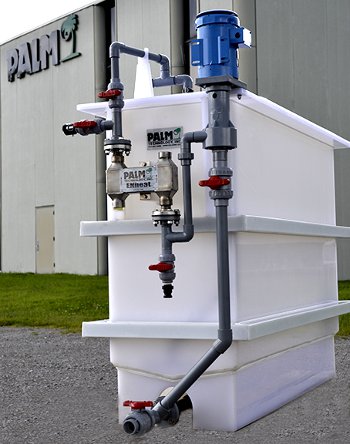

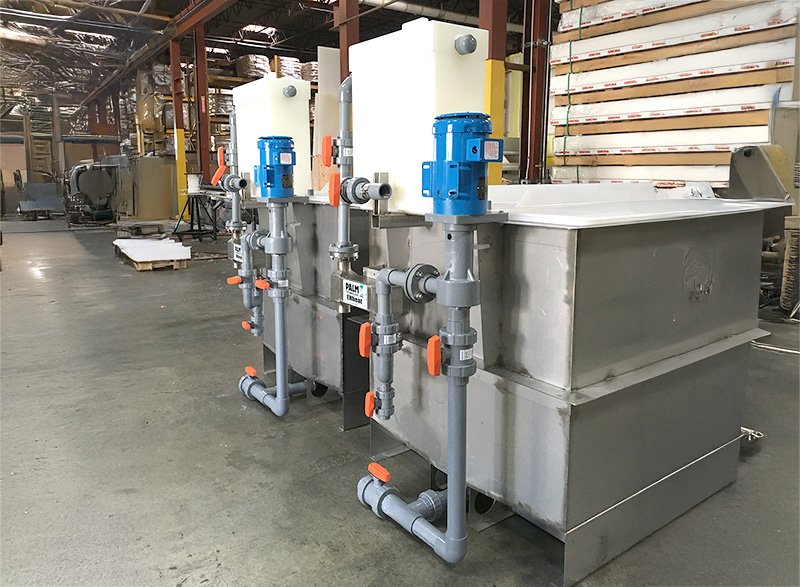

Palm's ENtank™ electroless nickel plating systems are the highest quality available, and are supplied complete and ready to operate. They are available either with solid stainless steel construction (to be used with the ENstat™ 3 anodic passivation system) or with a polypropylene liner in a stainless steel shell. Only extra low carbon grade Type 304L or 316L stainless steel is used to guarantee complete resistance to nitric acid.
Likewise, the polypropylene is stress relieved, virgin material, welded or extruded with copolymer rod under an inert atmosphere to ensure even expansion and freedom from defects. These techniques, while more expensive than others, significantly extend the life of electroless nickel systems. The quality that Palm provides helps ensure that their equipment will provide many years of reliable service. Each ENtank™ includes an air spider, a sealless vertical centrifugal pump, either an external ENheat™ heat exchanger or stainless steel electric immersion heaters, and filter bag holders, with all necessary piping and valves.
Systems and replacement liners are available can can be fabricated in any size. Special designs in any size for special applications with external filter chambers, sloped bottoms, or solution agitation can also be fabricated.
- Complete Turn-Key system
- Single tanks or complete systems
- Custom designs to any size
- Only low carbon, stainless steel used
- Only vigin natural stress relieved polypropylene used
- Electric or steam heated
Palm also fabricates stainless steel and polypropylene tanks for electrolytic plating and for pretreatment. They are designed for ease of operation, flexibility, and freedom from maintenance. These tanks receive the same care and attention that is given to electroless nickel plating tanks. Only 1/2, 3/4 inch or 1 inch thick sheet is used to fabricate polypropylene tanks, tank are full sheet butt welded with a corner to corner full penetration bottom weld. In addition, the side walls of plastic tanks are often reinforced with steel structure, and encapsulated with 3/16 inch thick polypropylene covers for corrosion resistance. Stainless steel tanks are also built from Type 304L or 316L sheet with formed lips and girths. Single, double and triple counterflow rinse tanks, complete with overflow weirs, water inlet spargers and air spiders, are standard.
